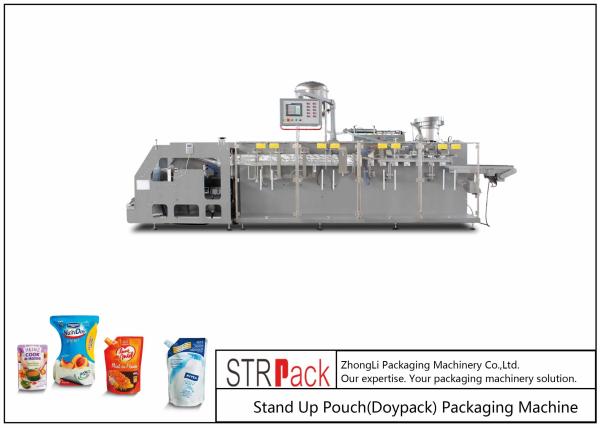

Full Automatic Stand Up Pouch(Doypack) Packaging Machine
1. Versatility strong, one machine can be realized powder, liquid, granules, paste different types of
packaging materials.
2. Automatic servo-correcting device can effectively solve the bag wrong side of the issue to ensure the overall stability of equipment, improve packaging speed.
3. Linear servo pull bag system that automatically adjust bag width size, improve equipment stability.
4. Product packaging system: using heat sealing packaging materials (polyethylene, multilayer composite coating),
the automatic bagging completed. Measures such as packaging filling and sealing process fully automated production facilities.
Trilateral closure pocket or bag is a four-sided flat closure. Use different forms of filling machine, and packaging different products.
5. Control System: PLC programmable computer controller Schneider-electric inverter and so on, high integration, the ability to control and reliable operation .
Touch screen technology enabled applications to operate machines more reliable and convenient .Photoelectric sensor, encoder,
the switches are close to the import of advanced sensors. Machinery and electronics integration has been a perfect performance.
6. Filling System: FESTO system, reliable and stable performance adjustments quick and easy.
Technical Parameter:
| Machine operation | HFFS | Horizontal form fill and seal |
| Technology concept | Pouch origin | Form the reel |
| Pouch transport system | intermittent |
| Construction | Machine frame | Stainless steel SUS304/ Carbon steel, the surface plastic coating |
| Except internal mechanisms | Parts painted Stainless steel colour/Stainless steel SUS304,and Aluminum alloy |
| Parts in contact with product | Stainless steel SUS316L |
| Reel | Reel diameter | 500mm |
| Reel Width | 720mm |
| Reel core | 76mm |
| Filling stations | | 2 (with 2-4 heads) |
| Product production | | Optional gas flushing (N2) or steam injection |
| Machine dimensions | Length×width×height | 6200×1100×2000mm |
| Machine weight | | 2500Kg |
| Pouch dimensions range(mm) | Length×width×height | | Minimum | Maximum |
| FLT-1 | 100×120 | 260×300 |
| FLT-2 | 80+80×120 | 130+130×300 |
| STU-1 | 100×120×(32+32) | 260×300×(52.5+52.5) |
| STU-2 | 80+80×120×(32+32) | 130+130×300×(41+41) |
| Packaging speed (pouches per minute) And pouch volume (c.c) | | | Speed maximum(ppm) | Volume maximum(c.c.) |
| with 3 and 4 side seals | FLT-1 | 90 | 2000 |
| FLT-2 | 160 | 600 |
| With doypack | STU-1 | 70 | 2500 |
| STU-2 | 120 | 750 |
| Consumption | Electrical | 14.0kw |
| Air consumption | 120L/min 0.6Mpa |
| Electrical Data | | 200-415V/50-60Hz/N+G(According to customer requirements customization) |
| Noise level | | ≤70dB |
| Safety | | CE standards |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
